Auckland Art Gallery
Project Requirements
A project that required a significant civil work as it was built on the side of the hill, high hydrostatic pressure was present
Industry Sector
Commercial
Solution
Volclay Bentonite Waterproofing and RX Waterstop to provide a dry, watertight basement.
Project Details

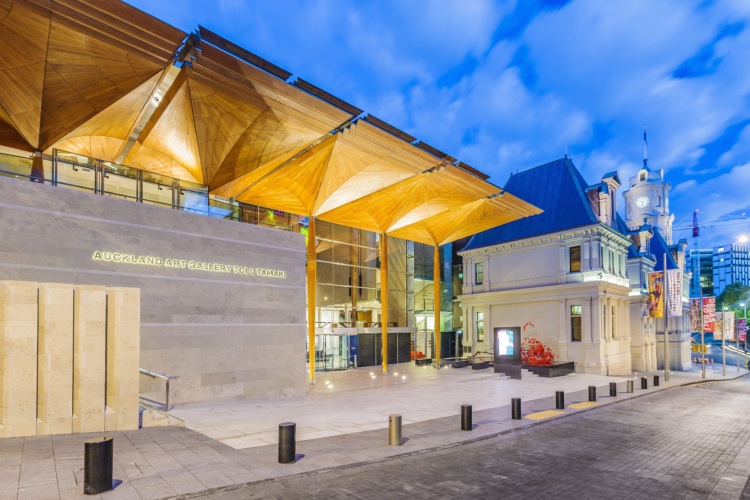

Project Name: Auckland Art Gallery
Applicator: Sansom Construction Services Ltd
Builder: Hawkins Construction Ltd
Architect: Archimedia & FJMT (Francis Jones Morehon Thorp) – Sydney
Products: Volclay Voltex DS Bentonite Membrane,Volclay Swelltite, Bentonite Membrane, Volclay RX101T Waterstop
Completed: September 2009
The Project
PROJECT REQUIREMENT
The project involved a significant amount of civil works, with retention piling, soil nails and ground anchors used to allow excavation and construction of new basement levels between the heritage buildings. Because it was built into the side of a hill, high hydrostatic pressure was constantly present.
PROJECT SOLUTION
Archimedia specified Volclay Bentonite Waterproofing and RX Waterstop to provide a dry, watertight basement. The waterproofing application faced significant challenges including a very muddy and wet site. Most of the walls were Shotcrete retention with Voltex DS pinned to the clay or rock face between piles. Reo was installed and Waterstop RX 101T was installed in all cold poured joints.
The many changes of plans and junctions caused an extended period of up to 2-3 weeks during which the Voltex DS was exposed to inclement weather. This required site-specific details to overcome these challenging conditions. Extensive QA checks were required over a two year period.
